Welding
20,000W
peak on arc strike

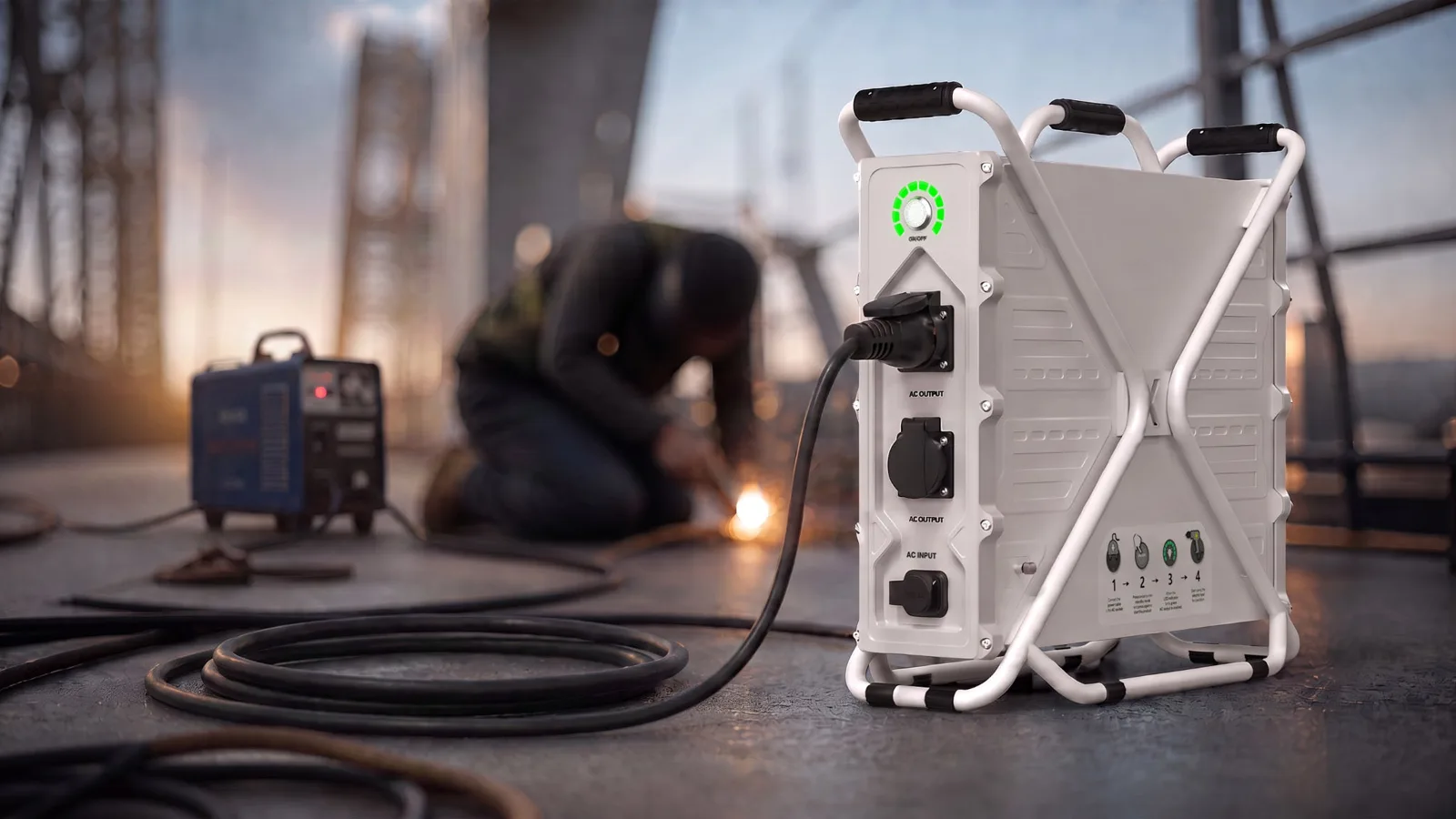

Strike an arc without tripping out. Light enough to carry up a scaffold.
StickMIGIndoor safe
Built in Queensland · Industrial power station

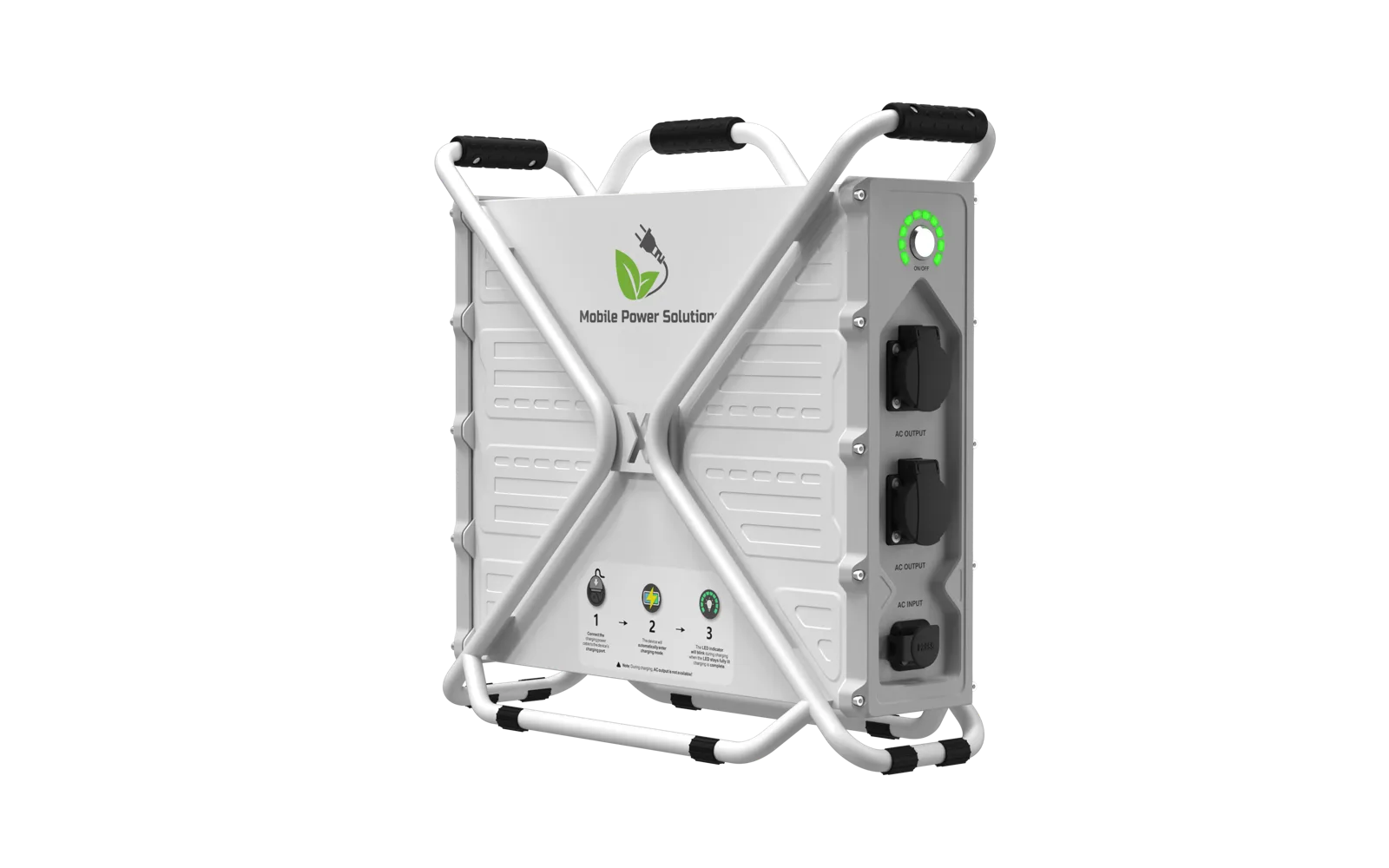

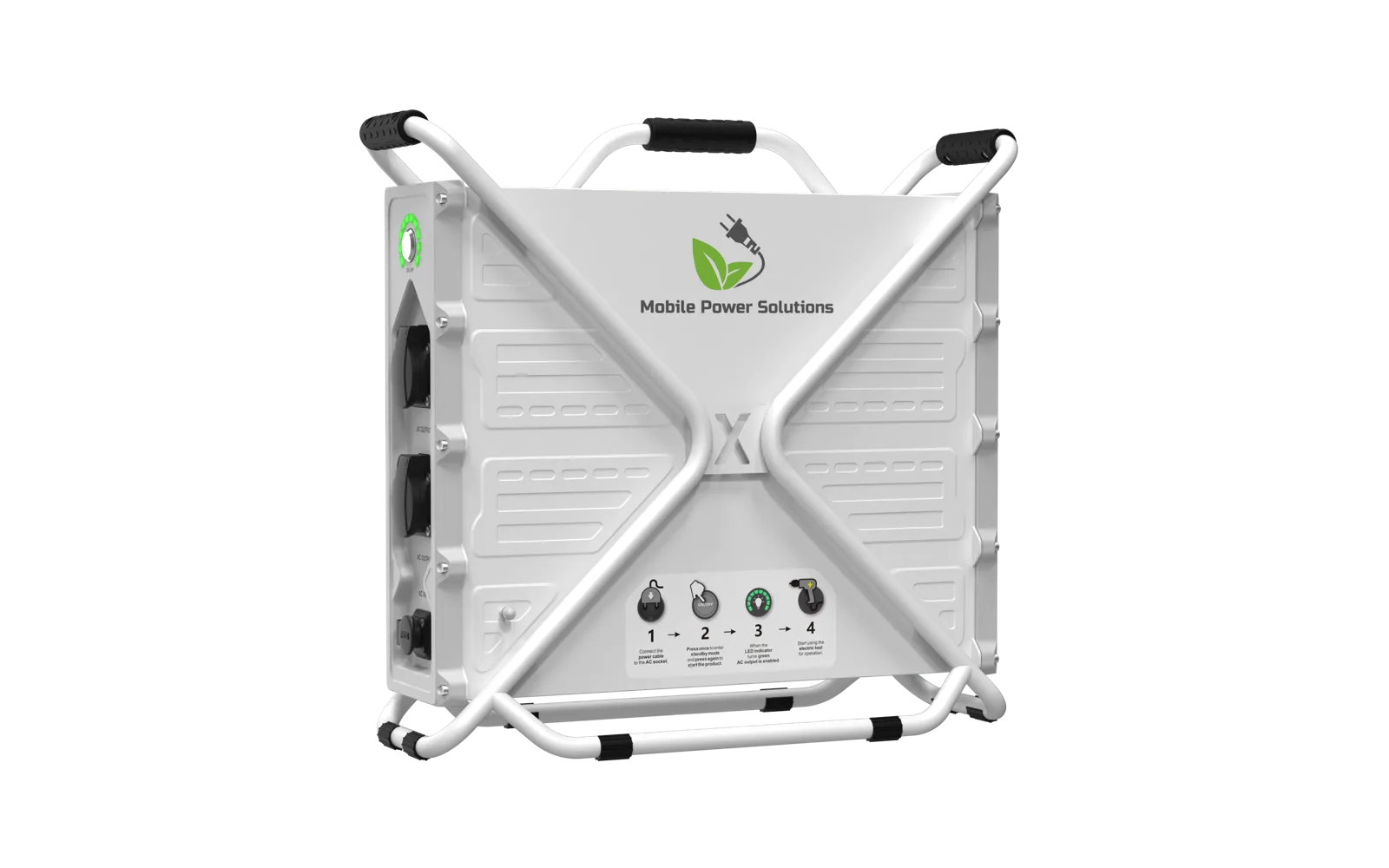

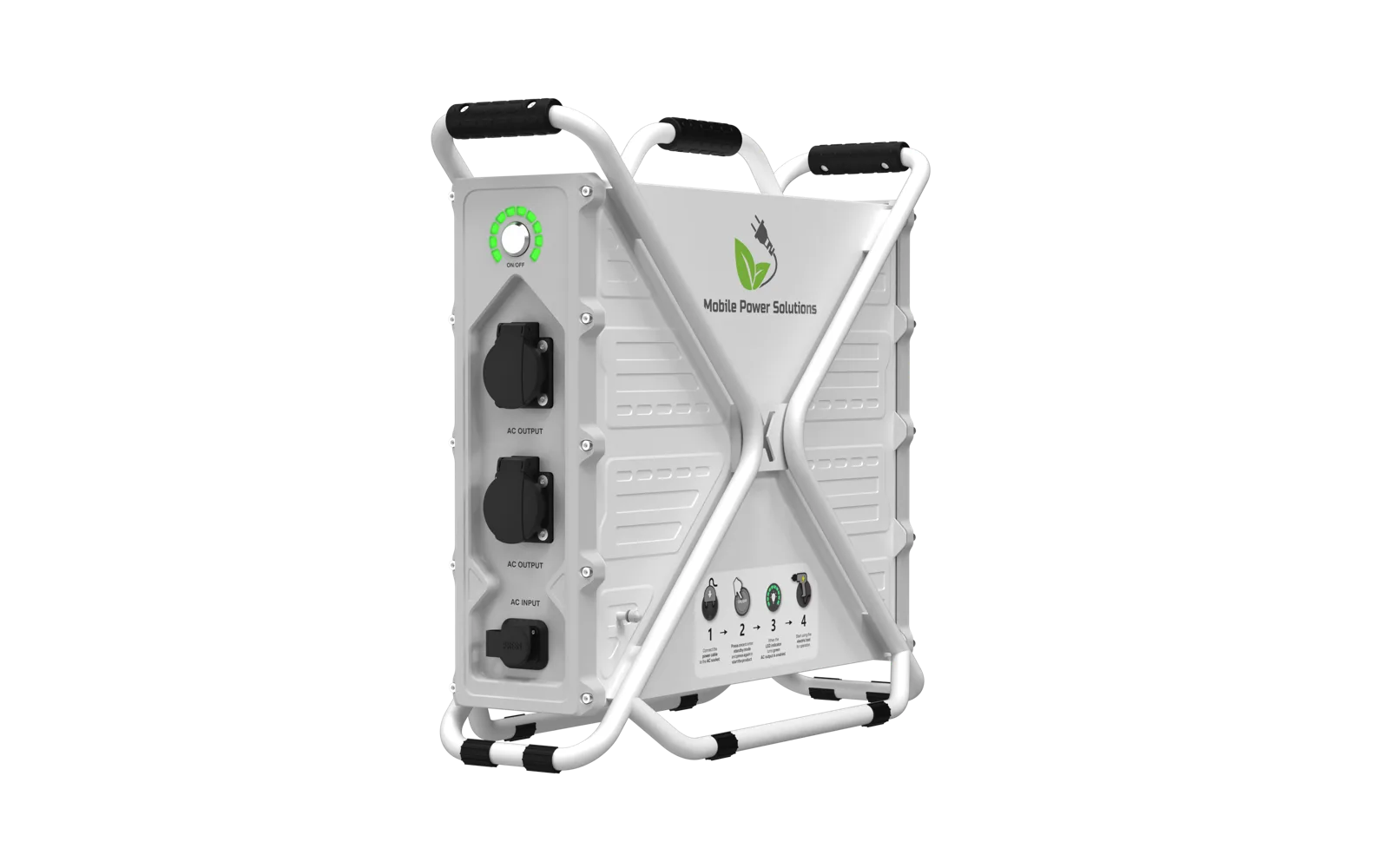

3600W Industrial Portable Power StationEscape PG3600-20000 — 20,000W Peak
Silent, fume-free site power for welding, construction, mining, commercial drilling and medical equipment. 3,600W rated, 20,000W peak surge, 2.3kWh storage, full recharge in 2.3 hours. No petrol, no exhaust, no pull-start.
- 20,000W peak surge
- IP54 rated · 23.8kg
- 18+ years · Built in QLD
In stock1 / 5BUY NOW — $4,900
In stock — order online and we ship Australia-wide.
Not sure it'll run your gear? We'll check it free.
In stock1 / 5In stock · Ships Australia-wide
Escape Industrial PG3600-20000
$4,900AUD inc. GST
Emu Money finance available
3,600W rated20,000W peak2.3kWh storage2.3hr recharge
20,000W peak surge
Silent · Zero fumes
Full recharge in 2.3 hours
IP54 rated · 18+ years in business
Full specifications
The PG3600-20000 at a glance
| Rated output power | 3,600W |
|---|---|
| Peak power | 20,000W |
| Peak output current | 140A (max instantaneous value) |
| Overload — 150% | 4,000W–5,400W, >500s |
| Overload — 200% | 5,400W–7,200W, >50s |
| Overload — 250% | 7,200W–9,000W, >10s |
| Rated storage capacity | 2.3kWh |
| Efficiency rating | 97% |
| Output voltage | 230–240V AC single phase, ultra pure sine wave |
| Rated frequency | 50Hz |
| AC charge time | 2.3 hours via built-in internal charger |
| Max input power | 1,200W |
| Input voltage range | 176–264V |
| Input frequency range | 45–65Hz |
| Cooling | Natural cooling via cool smart technology |
| Protection level | IP54 |
| Weight | 23.8kg |
| Dimensions | 526mm (W) × 485mm (H) × 211mm (D) |
| Charging temperature | 5°C to 40°C |
| Discharge temperature | −15°C to 55°C |
| Safety protection | Overcharge, high temperature, ultra low temperature, short circuit and electrostatic discharge |
Certified to Australian Certification Standards. CE and ROHS approved.
The spec that actually matters
3,600 watts rated. 20,000 watts peak.
Rated output is the number everyone advertises. Peak surge is the number that decides whether your gear actually starts. A compressor, a bench saw, a submersible pump or a stick welder draws many times its running load the instant it kicks over — and that spike is where most portable power stations trip out and most undersized generators stall. The PG3600 holds 20,000 watts of peak power and 140 amps of instantaneous output current. It doesn't flinch.
And it holds the overload for long enough to matter:
Output envelope
Watts · how long it holdsRated
3,600W
Continuous150% overload
4,000W–5,400W
>500 sec200% overload
5,400W–7,200W
>50 sec250% overload
7,200W–9,000W
>10 secPeak power
20,000W
Instant
Bars show the published power band for each level on a 0–20,000W scale.
0W
Rated continuous
0W
Peak power
0A
Peak output current (max instantaneous)
Who it's built for
Six jobs a petrol generator makes harder than it needs to be.
Construction & fit-out
230–240V
pure sine wave
Saws, grinders and chargers get wall-socket clean power before the site is connected.
SawsCompressorsLighting
Mining & remote sites
IP54
dust & splash rated
Fanless cooling, −15°C to 55°C. Nothing to refuel or spill.
No fuelFanlessRugged
Commercial drilling
7,200W
held 50+ seconds
Repeated high-draw cycles won't shut you down mid-hole.
Rig gearHandheldHeavy draw
Medical & emergency
0
fumes or exhaust
Silent, clean power for ambulances, field clinics and aged care.
SilentZero emissionsIndoor
Mobile trades & vans
2.3 hrs
full recharge
23.8kg, fits a ute tray or van. Top up overnight at the depot.
Portable23.8kgFast charge
No marketing claims — just what's in the box
Built by an electrical engineer. Sold direct. Answered by a human.
Mobile Power Solutions doesn't resell other people's gear. Tony Villiers designs and builds the Escape range near Dalby in Queensland, and he's the one who picks up the phone when you call.
Not a reseller
Designed and assembled by Mobile Power Solutions. Battery, inverter and charger in one integrated unit.
18+ years in business
Electrical engineer by trade. Tony and Melodie Villiers have built power for Australian conditions since before lithium was the default.
Certified to Australian standards
Meets Australian Certification Standards, CE and ROHS approved. 230–240V pure sine wave at 50Hz.
You get a person on the phone
No queue, no call centre. Call 0435 754 254 and talk to the people who built it.
Sold direct, shipped Australia-wide
Metro, regional and remote. No shopfront, no retail markup.
Warranty handled directly
Repairs managed from the Dalby workshop. You cover freight in; they cover freight back.
Built near Dalby, Queensland. Delivered anywhere in Australia.
Mobile Power Solutions ships from the Western Downs to metro, regional and remote addresses right across the country. There's no shopfront and no retail chain in between — you're buying from the people who built it.
- In stock now — no lead time, no back order
- Australia-wide delivery, including regional and remote addresses
- Emu Money finance available — apply online, keep your cash flow working
- Freight on larger off-grid power stations is quoted at time of order — call to confirm your address
0435 754 254
Calling is preferred — you'll get Tony or Melodie, not a queue.
sales@powersolutionsaustralia.com.auDalby, Western Downs, QLD 4405
Call any time during business hours. If we're at an expo, leave a message and we'll call you back.
Free equipment check
Not sure it'll run your gear?
Tell us what you need to run — the welder, the compressor, the pump, the rig — and we'll tell you straight whether the PG3600 handles it. If it doesn't, we'll say so and point you at something that does. No charge, no sales pitch.
- Same-day response. Enquiries sent during business hours are typically answered the same day.
- Free load calculation. Send us your tool list and we'll work out the draw and the surge.
- Straight answers. An electrical engineer reads your enquiry, not a script.
- Prefer to call? 0435 754 254
Questions
Before you buy

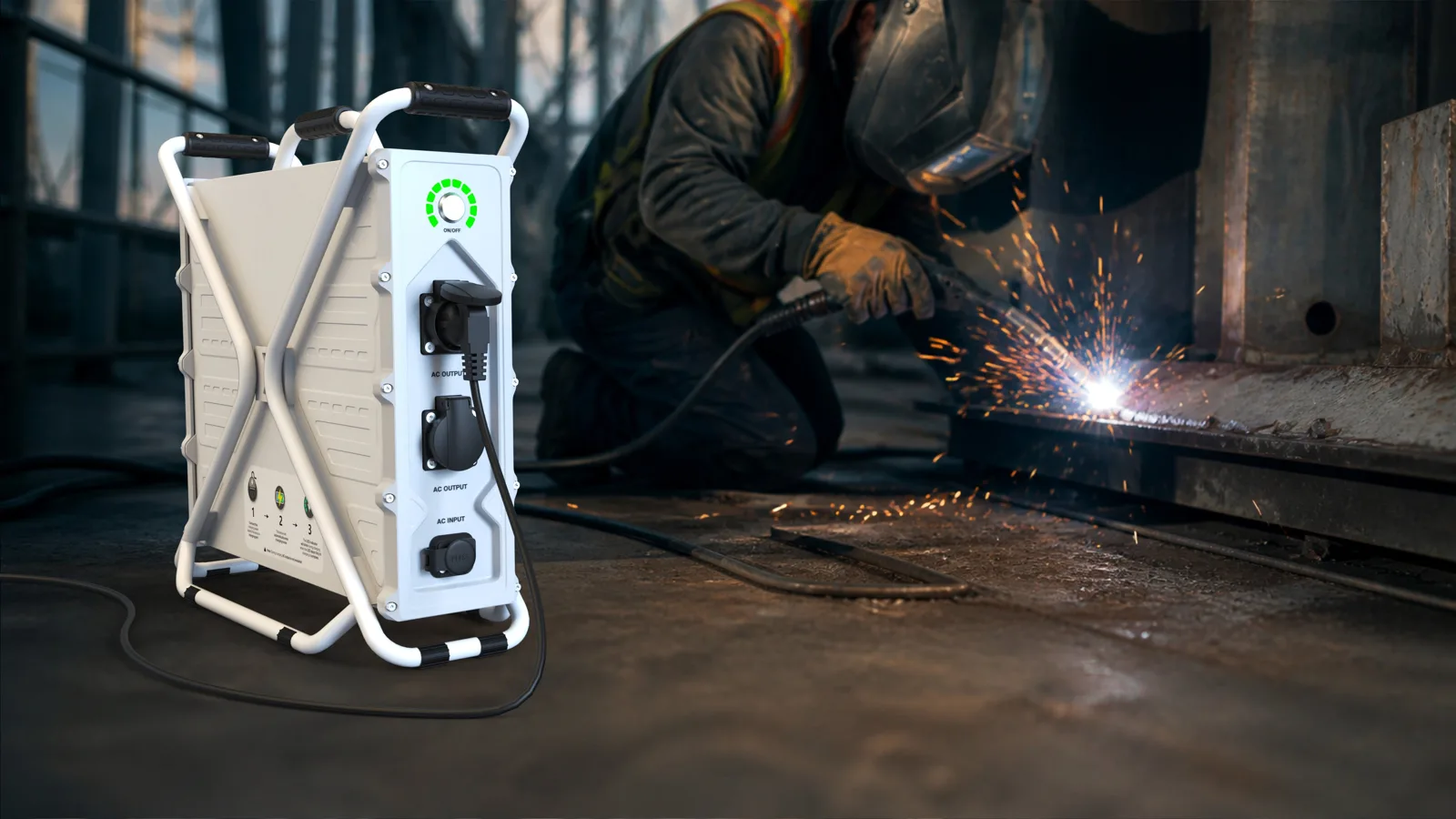

Yes. That's the use case it was built for. A stick or MIG welder draws hard the moment you strike an arc, and that inrush is where most portable power trips out. The PG3600 is rated at 3,600W continuous with 20,000W of peak power and 140A of maximum instantaneous output current. It also holds overload rather than cutting instantly — 150% (4,000–5,400W) for more than 500 seconds, 200% (5,400–7,200W) for more than 50 seconds, and 250% (7,200–9,000W) for more than 10 seconds. Send us your welder's specs and we'll confirm it before you buy.
Stop dragging a generator to site.
The Escape Industrial PG3600-20000 — 3,600W rated, 20,000W peak, 2.3kWh storage, full recharge in 2.3 hours. IP54, 23.8kg, built in Queensland by an electrical engineer with 18+ years behind him. $4,900, in stock, delivered Australia-wide.
